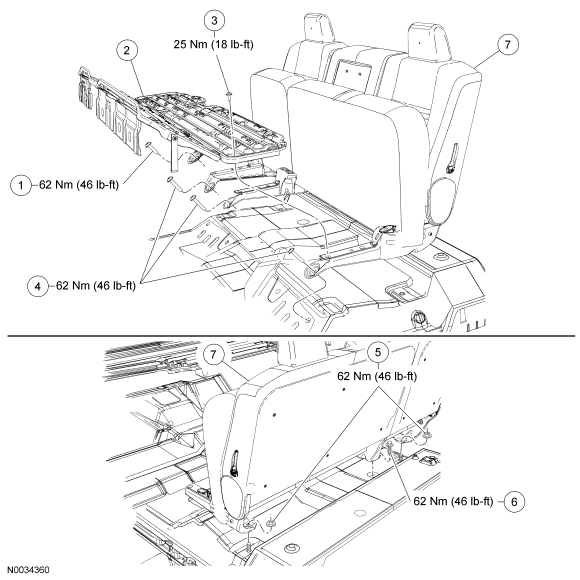

Seat - Rear, 60/40, CrewCab: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Load floor-to-floor bolt |
| 2 |
606A28 |
Load floor assembly |
| 3 |
- |
Load floor bolts (6 required) |
| 4 |
- |
Front seat riser-to-floor bolts |
| 5 |
- |
Rear seat riser-to-floor nuts |
| 6 |
- |
Rear seat riser-to-floor bolt |
| 7 |
- |
60/40 rear seat assembly |
