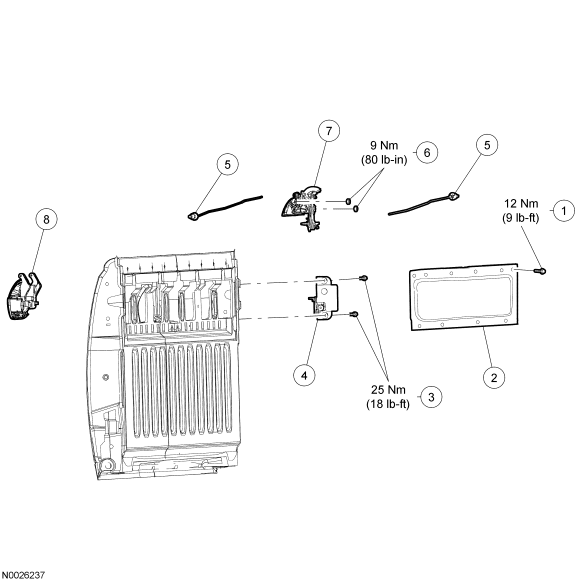

Tailgate Handle, Lock and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tailgate access panel screws (10 required) |
| 2 | - | Tailgate access panel |
| 3 | N806910 | Tailgate latch bolts (4 required) |
| 4 | 43150 | Tailgate latch (2 required) |
| 5 | 431A78 | Tailgate latch actuating rods (2 required) |
| 6 | - | Tailgate latch remote control nuts (2 required) |
| 7 | 43170 | Tailgate remote control |
| 8 | 43400 | Tailgate release handle |
- For additional information, refer to the following procedures.
