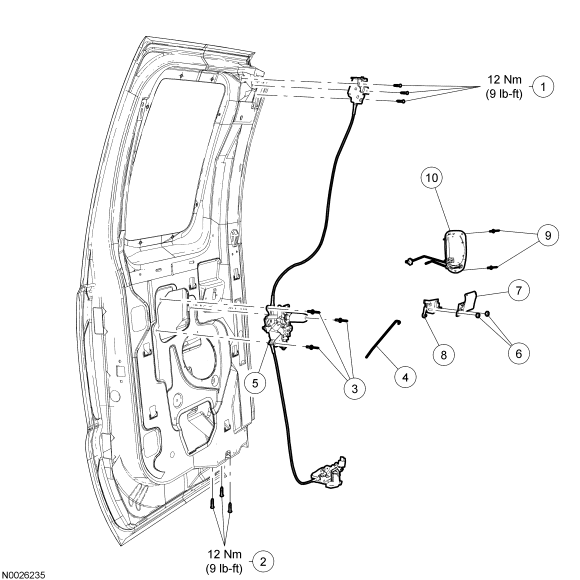

Rear Door Handles, Locks and Latches - Exploded View, SuperCab
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The LH door is shown, the RH door is similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | N807169 | Upper door latch screws (3 required) |
| 2 | N811471 | Lower door latch screws (3 required) |
| 3 | 21952 | Remote control rivets (3 required) |
| 4 | 26442 | Interior door handle actuating rod |
| 5 | 264A00/ 264A01 | Remote control (RH/LH) |
| 6 | W620391 | Interior door handle nuts (2 required) |
| 7 | 22600/22601 | Interior door handle (RH/LH) |
| 8 | 431A42/ 431A43 | Interior door handle remote control (RH/LH) |
| 9 | W525172 | Exterior door handle rivets (2 required) |
| 10 | 26600/26601 | Exterior door handle (RH/LH) |
- For additional information, refer to the following procedures.
