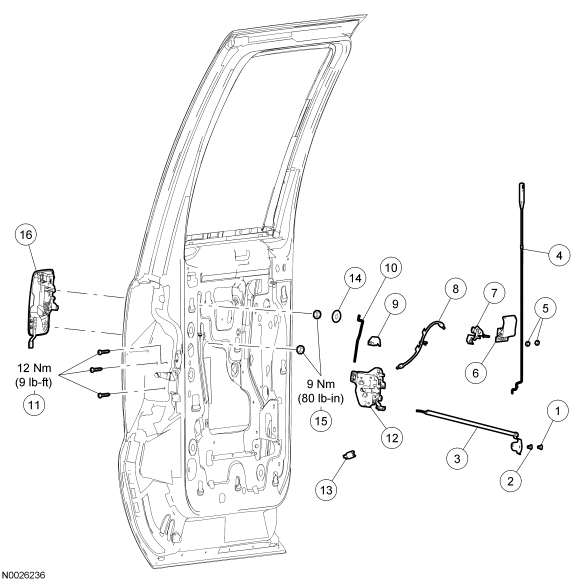

Rear Door Handles, Locks and Latches - Exploded View, Crew Cab
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The LH door is shown, the RH door is similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Door lock actuating rod bellcrank rivet |
| 2 | 386656S | Door lock actuating rod bellcrank bushing |
| 3 | 26648/26649 | Door lock actuating rod and bellcrank (RH/LH) |
| 4 | 26460/26461 | Push button rod (RH/LH) |
| 5 | W620391 | Interior door handle nuts (2 required) |
| 6 | 22600/22601 | Interior door handle (RH/LH) |
| 7 | 21818/21819 | Interior door handle remote control (RH/LH) |
| 8 | 265B10 | Interior door handle actuating cable |
| 9 | 221A06 | Interior door handle actuating cable water seal |
| 10 | 22152/22153 | Exterior door handle actuating rod (RH/LH) |
| 11 | N811471 | Door latch screws (3 required) |
| 12 | 26412/26413 | Door latch (RH/LH) |
| 13 | - | Door latch electrical connector (part of 14A005) |
| 14 | - | Body plug |
| 15 | - | Exterior door handle nuts (2 required) |
| 16 | 26600/26601 | Exterior door handle (RH/LH) |
- For additional information, refer to the following procedures.
