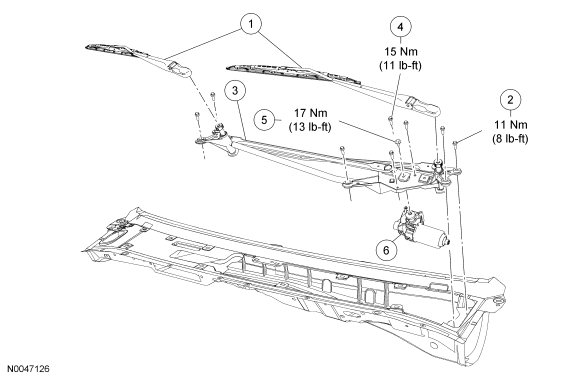

Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17526 | Wiper pivot arm |
| 2 | W703845-S426 | Wiper pivot shaft assembly bolt (5 required) (vehicles built through 4/2006) |
| 2 | W703845-S439 | Wiper pivot shaft assembly bolt (5 required) (vehicles built after 4/2006) |
| 3 | 17508 | Pivot shaft assembly |
| 4 | N611175 | Windshield wiper motor bolt (3 required) |
| 5 | - | Wiper pivot arm bolt (1 required) |
| 6 | 17508 | Windshield wiper motor |
- For additional information, refer to the procedures in this article.
