Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

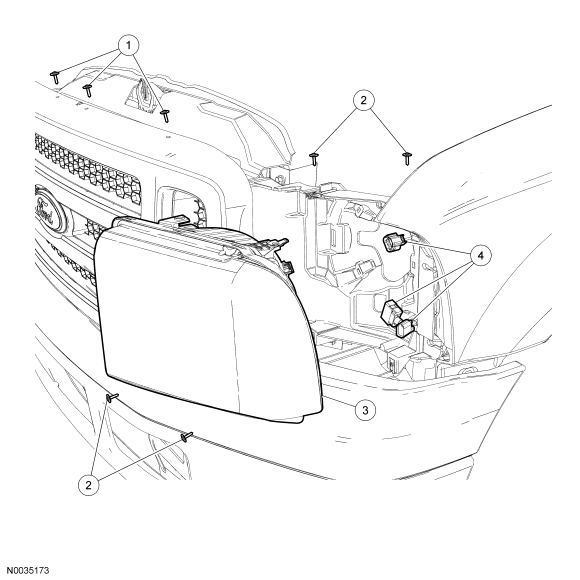

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N801603 |
Radiator grille screws (4 required) |
| 2 |
- |
Headlamp assembly screws (4 required) |
| 3 |
13005/13006 |
Headlamp assembly (RH/LH) |
| 4 |
- |
Headlamp assembly electrical connectors (part of 12A581) |

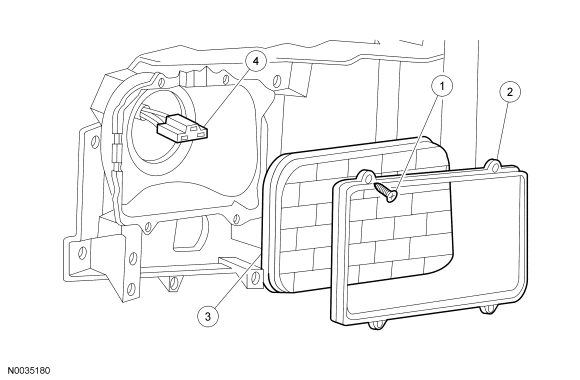

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Headlamp retaining ring screws (4 required) |
| 2 |
- |
Headlamp retaining ring |
| 3 |
- |
Headlamp assembly |
| 4 |
- |
Headlamp electrical connector (part of 12A581) |
