Removal And Installation
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

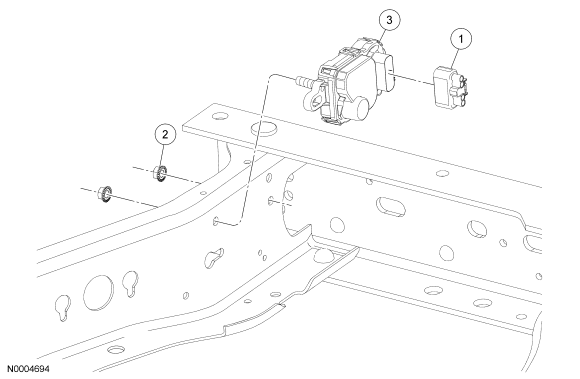

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel pump driver module (FPDM) electrical connector (part of 14405) |
| 2 | W705448-S | FPDM nut |
| 3 | 9D370 | FPDM |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
- Disconnect the fuel pump driver module (FPDM) electrical connector.
- Remove the FPDM nuts.
- To install, tighten to 10 Nm (89 lb-in).
- Remove the FPDM.
- To install, reverse the removal procedure.
