Removal And Installation

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

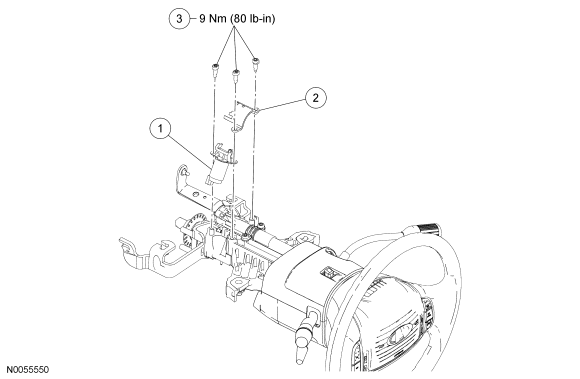

Fig 1: Identifying Brake Shift Interlock Actuator With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3F770	Brake shift interlock actuator
2	7A216	Insert plate
3	N806584-S	Brake shift interlock actuator bolts (3 required)

Remove the steering column assembly. For additional information, refer to STEERING COLUMN article.
Remove the insert plate and shift lock actuator.

Fig 2: Locating Shift Lock Actuator Bolts
Courtesy of FORD MOTOR CO.

NOTE: The shift lock actuator clip is an assembly aid for the assembly plant and does not need to be replaced in the field.

Fig 3: Locating Shift Lock Actuator Clip

Courtesy of FORD MOTOR CO.

Remove the insert plate from the shift lock actuator.
- Remove and discard the shift lock actuator clip.
To install, reverse the removal procedure.
- Tighten to 9 Nm (80 lb-in).
Fig 4: Locating Shift Lock Actuator Bolts
Courtesy of FORD MOTOR CO.
