Steering Wheel: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Remover, Differential Bearing	205-116 (T77F-4220-B1)

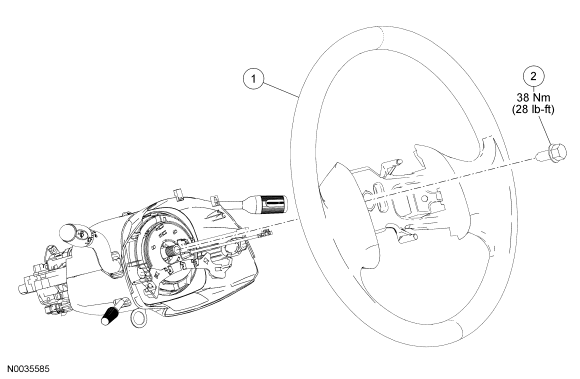

Fig 1: Exploded View Of Steering Wheel With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3600	Steering wheel
2	-	Bolt
