Power Steering Pump: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |
NOTE:

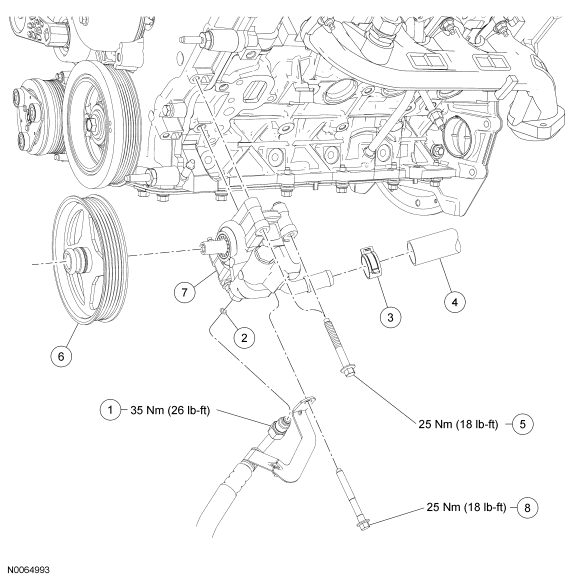

Vacuum boost system shown, Hydro-Boost® similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power steering pressure line-to-pump fitting (part of 3A719) |
| 2 | N806316 | Teflon® seal |
| 3 | W525862 | Clamp |
| 4 | 3691 | Power steering supply hose |
| 5 | W500315 | Power steering pump bolt (2 required) (gas engine) |
| 6 | 3A733 | Power steering pump pulley |
| 7 | 3A674 | Power steering pump |
| 8 | W701526 | Power steering pump bolt (gas engine) |
| 8 | W701526 | Power steering pump bolt (3 required) (diesel engine) |
