Power Steering Pump to Steering Gear Pressure Line: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

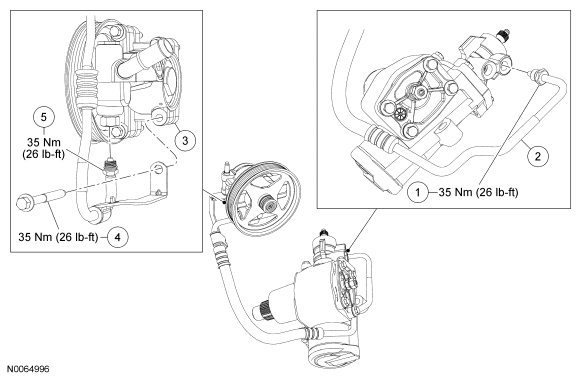

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-steering gear fitting (part of 3A719) |
| 2 | 3A719 | Pressure line |
| 3 | 3A674 | Power steering pump |
| 4 | W701526 | Power steering pump bolt |
| 5 | - | Pressure line-to-pump fitting (part of 3A719) |
