Window Glass - Rear Door, SuperCab: Removal

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and position the latch aside.
    Fig 1: Removing Screws
    GF0005180Courtesy of FORD MOTOR CO.
  2. Remove the rear door window trim panel.
    Fig 2: Removing Rear Door Window Trim Panel
    GF0005181Courtesy of FORD MOTOR CO.
  3. Remove the rear door window glass.
    • Remove the nuts and clips.
    • Remove the rear door window glass and frame.

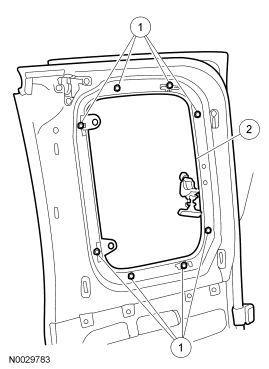

    Fig 3: Identifying Rear Door Window Glass, Frame Nuts And Clips
    GF0005182Courtesy of FORD MOTOR CO.
  4. Remove excess foam butyl from the window frame and window opening.
