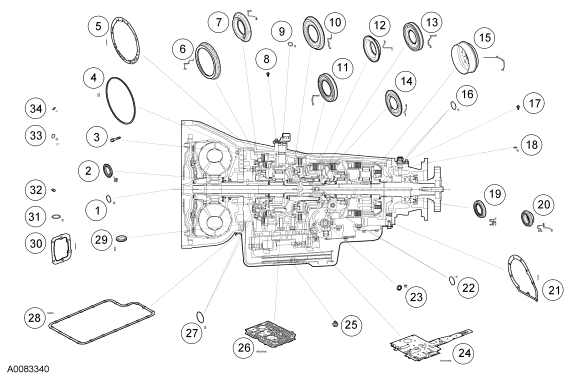

Seals, Rings And Gasket Locator
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7L323 | Stator support seal |
| 2 | 7A248 | Front pump support seal assembly |
| 3 | 7N134 | Pump-to-case bolts |
| 4 | 7A248 | Front pump seal-to-case |
| 5 | 7A136 | Front pump-to-case gasket |
| 6 | 7A262 | Overdrive clutch piston |
| 7 | 7A262 | Coast clutch piston |
| 8 | N805503-S100 | Sensor-to-case retaining bolt |
| 9 | 7Z101 | Turbine shaft speed (TSS) and intermediate shaft speed sensor O-ring |
| 10 | 7E005 | Intermediate clutch piston |
| 11 | 7G262 | Direct clutch piston |
| 12 | 7H359 | Direct clutch balance piston |
| 13 | 7G262 | Forward clutch piston |
| 14 | 7H360 | Forward clutch balance piston |
| 15 | 7D402 | Reverse clutch piston |
| 16 | 7D019 | Case seal pack Teflon® seals |
| 17 | N805503-S100 | Sensor-to-case retaining bolt |
| 18 | 7Z101 | Output shaft speed (OSS) sensor O-ring |
| 19 | 7052 | Fixed yoke extension housing seal |
| 20 | 7052 | Slip yoke extension housing seal |
| 21 | 7086 | Extension housing-to-case gasket |
| 22 | 7D019 | Forward clutch piston Teflon® seals |
| 23 | 7B498 | Manual lever-to-case |
| 24 | 7C155 | Solenoid body to case gasket |
| 25 | 6730 | Transmission fluid pan drain plug |
| 26 | 7H200 | Manifold-to-ditch plate filter and gasket |
| 27 | 7G402 | Coast clutch Teflon® seals |
| 28 | 7A191 | Transmission fluid pan-to-case gasket |
| 29 | 7Z302 | Transmission fluid filter-to-case seal |
| 30 | 7223 | Power take off (PTO) cover gasket (if equipped) |
| 31 | 7J149 | Solenoid body bulkhead electrical connector |
| 32 | 390685-S | Line pressure pipe plug |
| 33 | W708418-S300 | Cooler line connector O-ring |
| 34 | 391308-S | Fluid fill tube-to-stub seal |
