Turbocharger Inlet Y-Pipe - 6.0L Diesel: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |
NOTE:
The names turbocharger inlet Y-pipe and turbocharger adapter pipe refer to the same component.

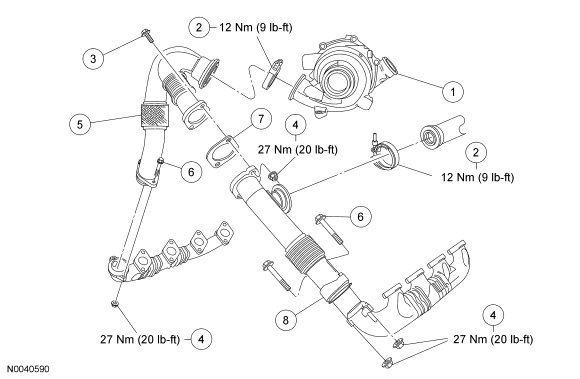

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K682 | Turbocharger |
| 2 | 8287 | Clamps |
| 3 | W300006 | Turbocharger inlet Y-pipe bolt (2 required) |
| 4 | W300051 | Turbocharger inlet Y-pipe nuts (6 required) |
| 5 | 6K854 | Turbocharger inlet Y-pipe (LH) |
| 6 | W300013 | Turbocharger inlet Y-pipe bolts (4 required) |
| 7 | 6N640 | Turbocharger inlet Y-pipe gasket |
| 8 | 6K854 | Turbocharger inlet Y-pipe (RH) |
