Exhaust System - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicle body removed for clarity.
NOTE:
Exhaust systems will vary by wheelbase.
NOTE:
Frames will vary by width and length.

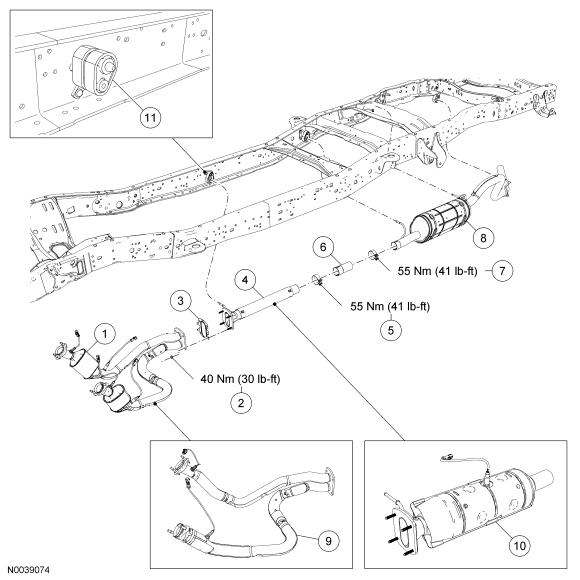

| Item | Part Number | Description |
|---|---|---|
| 1 | 5F250 | Exhaust Y-pipe with dual catalytic converters |
| 2 | W705443 | Exhaust Y-pipe flange nut (4 required) |
| 3 | 5B266 | Exhaust Y-pipe flange gasket |
| 4 | 5246 | Catalytic converter delete pipe |
| 5 | - | Coupling |
| 6 | 5A212 | Exhaust intermediate pipe |
| 7 | - | Coupling |
| 8 | 5230 | Muffler and tailpipe |
| 9 | 5246 | Exhaust Y-pipe without dual catalytic converters |
| 10 | 5E212 | Catalytic converter |
| 11 | 5A262 | Double exhaust isolator (underbody catalytic converter equipped vehicles only) |
NOTE:
Vehicle body removed for clarity.
NOTE:
Exhaust systems will vary by wheelbase.
NOTE:
Frames will vary by width and length.

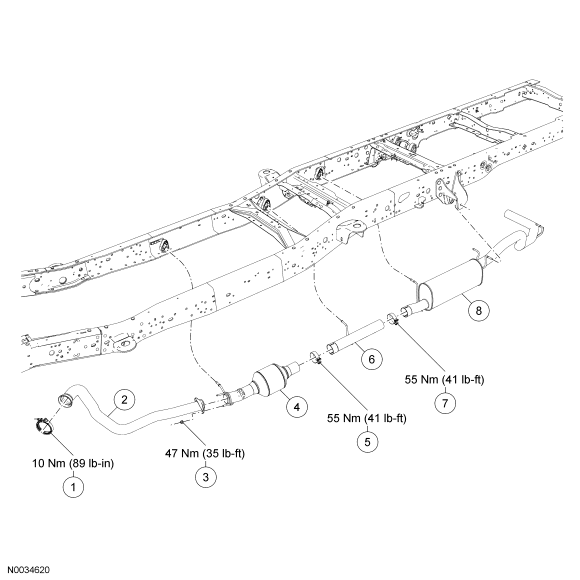

| Item | Part Number | Description |
|---|---|---|
| 1 | 5A231 | Clamp |
| 2 | 6N646 | Exhaust downpipe |
| 3 | N620482 | Exhaust downpipe-to-catalytic converter nut (2 required) |
| 4 | 5E212 | Catalytic converter |
| 5 | - | Coupling |
| 6 | 5A212 | Exhaust intermediate pipe |
| 7 | - | Coupling |
| 8 | 5230 | Muffler and tailpipe assembly |
- For additional information, refer to the procedures in this article.
