Intake Manifold: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket Remover ZC-30 |
- |

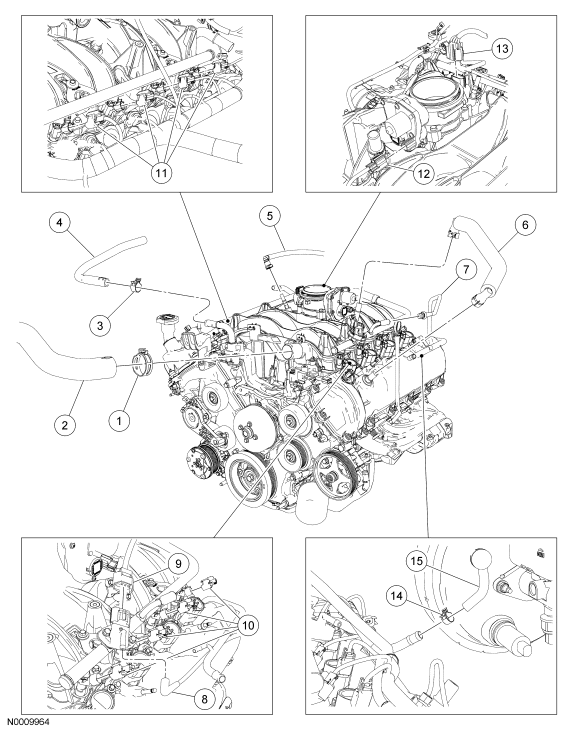

| Item | Part Number | Description |
|---|---|---|
| 1 | W705800 | Radiator hose clamp |
| 2 | 9F792 | Radiator hose |
| 3 | - | Heater hose clamp |
| 4 | 9229 | Heater hose |
| 5 | 6K824 | Evaporative emissions system (EVAP) tube |
| 6 | 6K817 | Positive crankcase ventilation (PCV) tube |
| 7 | - | Fuel supply tube spring lock coupling |
| 8 | - | Fuel rail pressure and temperature sensor vacuum hose (part of 9D446) |
| 9 | - | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 10 | - | LH fuel injector electrical connectors (4 required) (part of 12B637) |
| 11 | - | RH fuel injector electrical connectors (4 required) (part of 12B637) |
| 12 | - | Electronic acceleration control electrical connector (part of 12B637) |
| 13 | - | Throttle position (TP) sensor electrical connector (part of 12B637) |
| 14 | - | Intake manifold vacuum tube-to-brake booster hose clamp |
| 15 | - | Intake manifold vacuum tube-to-brake booster hose |

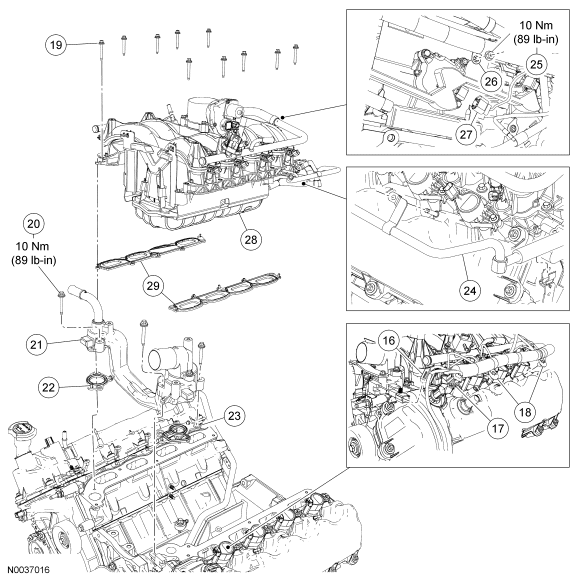

| Item | Part Number | Description |
|---|---|---|
| 16 | - | Radio ignition interference capacitor electrical connector (part of 12B637) |
| 17 | - | Variable camshaft timing (VCT) oil control solenoid electrical connector (part of 12B637) |
| 18 | - | Engine wiring harness retainers (part of 12B637) |
| 19 | W709775 | Intake manifold bolt (10 required) |
| 20 | 12B637 | Engine coolant crossover assembly bolt (3 required) |
| 21 | 8C369 | Engine coolant crossover assembly |
| 22 | 8C387 | Engine coolant crossover assembly gasket |
| 23 | 8C389 | Engine coolant crossover assembly gasket |
| 24 | 9A474 | Intake manifold vacuum tube |
| 25 | N621903 | Engine wiring harness retainer nut |
| 26 | - | Engine wiring harness retainer (part of 12B637) |
| 27 | - | Charge motion control valve (CMCV) electrical connector (part of 12B637) |
| 28 | 9Y451 | Intake manifold |
| 29 | - | Intake manifold gaskets (2 required) |
