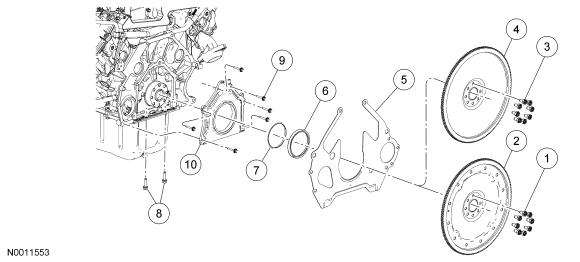

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N806168 | Flexplate bolt (8 required) |
| 2 | 6375 | Flexplate |
| 3 | N808139 | Flywheel bolt (8 required) |
| 4 | 6375 | Flywheel |
| 5 | 6A373 | Rear cover plate |
| 6 | 6310 | Crankshaft oil slinger |
| 7 | 6701 | Crankshaft rear seal |
| 8 | W701605 | Oil pan bolts (2 required) |
| 9 | N806155 | Crankshaft rear seal retainer plate bolt (6 required) |
| 10 | 6K318 | Crankshaft rear seal retainer plate |
- For additional information, refer to the procedures in this article.
