Crankshaft Front Seal: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Crankshaft Front Seal | 303-635 | |
| Installer, Front Cover Seal | 303-335 (T88T-6701-A) | |
| Remover, Crankshaft Front Seal | 303-107 (T74P-6700-A) | |
| Installer, Crankshaft Vibration Damper | 303-102 (T74P-6316-B) | |
| Remover, Crankshaft Vibration Damper | 303-009 (T58P-6316-D) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket Remover ZC-30 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

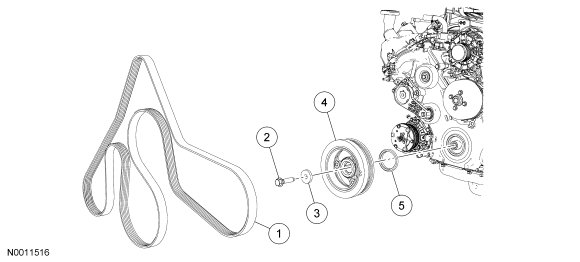

| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | W701512 | Crankshaft pulley bolt |
| 3 | N806165 | Crankshaft pulley bolt washer |
| 4 | 6316 | Crankshaft pulley |
| 5 | 6700 | Crankshaft front seal |
