Throttle Position (TP) Sensor - 6.8L: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

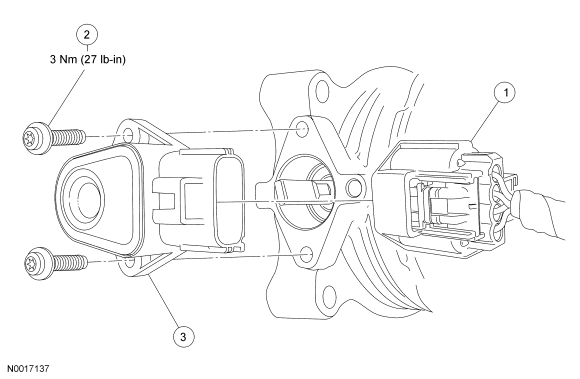

Fig 1: Exploded View Of Throttle Position TP Sensor - 6.8L With Torque Specifications
GF0006031Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Throttle position (TP) sensor electrical connector
2 W707535 TP screw (2 required)
3 9E928 TP sensor
