Intake Manifold Runner Control (IMRC) Actuator - 6.8L: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

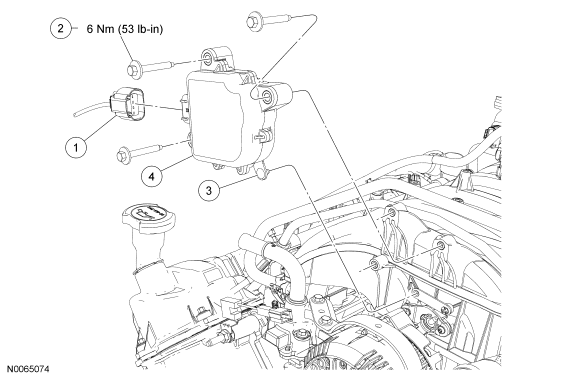

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Intake manifold runner control (IMRC) actuator electrical connector (part of 12B637) |
| 2 | W503917-S | IMRC bolt (3 required) |
| 3 | - | IMRC rod pivot pin |
| 4 | 9J559 | IMRC |
