Fuel Rail Pressure and Temperature Sensor - 5.4L: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

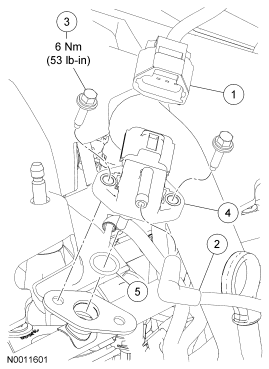

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 2 | 9E498 | Fuel rail pressure and temperature sensor vacuum connector |
| 3 | N808874 | Fuel rail pressure and temperature sensor bolt (2 required) |
| 4 | 9F972 | Fuel rail pressure and temperature sensor |
| 5 | - | Fuel rail pressure and temperature sensor O-ring seal |
