Radiator and Cooling Fan - Exploded View, Gasoline Engines
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

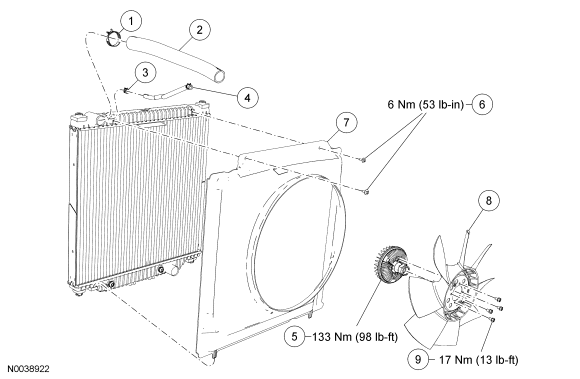

| Item |
Part Number |
Description |
| 1 |
15161 |
Upper radiator hose clamp |
| 2 |
8B274 |
Upper radiator hose |
| 3 |
W527352 |
Degas bottle hose clamp |
| 4 |
8W005 |
Degas bottle hose |
| 5 |
8A616 |
Cooling fan clutch |
| 6 |
N807658 |
Radiator shroud bolts (2 required) |
| 7 |
8146 |
Radiator shroud |
| 8 |
8600 |
Cooling fan |
| 9 |
57632 |
Cooling fan-to-clutch bolt (4 required) |
Courtesy of FORD MOTOR CO.

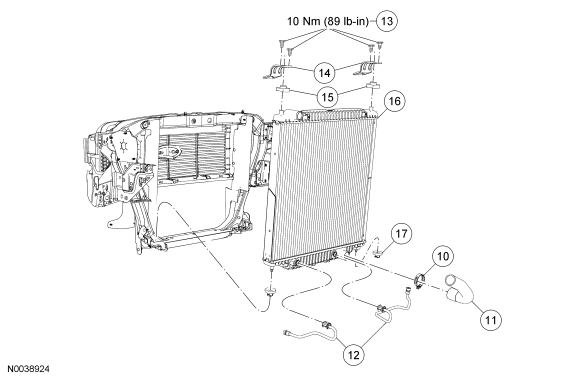

| Item |
Part Number |
Description |
| 10 |
15161 |
Lower radiator hose clamp |
| 11 |
8B273 |
Lower radiator hose |
| 12 |
7A031 |
Transmission cooler lines |
| 13 |
n606676 |
Radiator support bracket bolts (4 required) |
| 14 |
8B359 |
Radiator support brackets (2 required) |
| 15 |
8B204 |
Upper radiator insulators (2 required) |
| 16 |
8005 |
Radiator |
| 17 |
8B204 |
Lower radiator insulator (2 required) |
- For additional information, refer to the procedures in this article.
