Radiator and Cooling Fan - Exploded View, Diesel Engines
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|

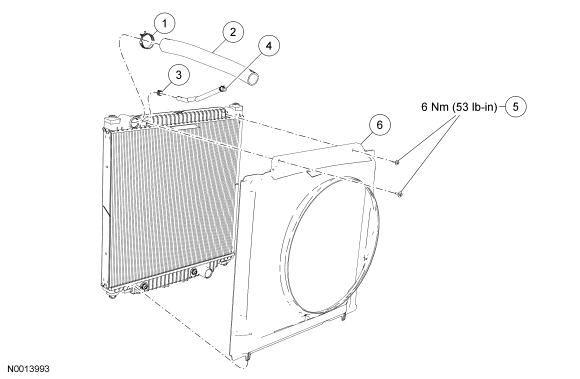

| 1 | 15161 | Upper radiator hose clamp |
| 2 | 8B274 | Upper radiator hose |
| 3 | W527352 | Degas bottle hose clamp |
| 4 | 8W005 | Degas bottle hose |
| 5 | N807658 | Radiator shroud bolts (2 required) |
| 6 | 8146 | Radiator shroud |
| Item | Part Number | Description |
|---|---|---|

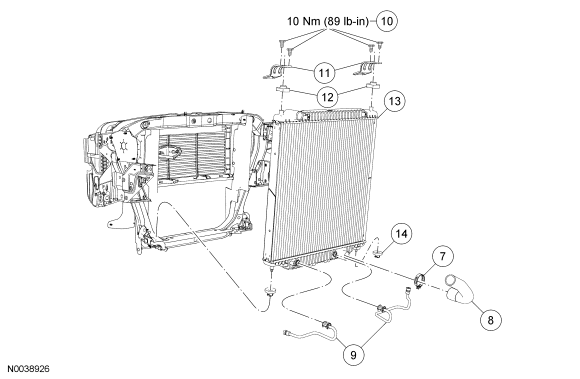

| 7 | 15161 | Lower radiator hose clamp |
| 8 | 8B273 | Lower radiator hose |
| 9 | 7A031 | Transmission cooler lines |
| 10 | N606676 | Radiator support bracket bolts (4 required) |
| 11 | 8B359 | Radiator support brackets (2 required) |
| 12 | 8B204 | Upper radiator insulators (2 required) |
| 13 | 8005 | Radiator |
| 14 | 8B204 | Lower radiator insulator (2 required) |
| Item | Part Number | Description |
|---|---|---|

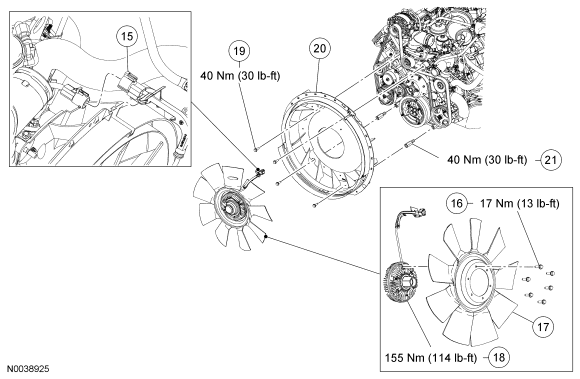

| 15 | - | Cooling fan electrical connector (part of 8A616) |
| 16 | 57632 | Cooling fan-to-clutch bolt (6 required) |
| 17 | 8600 | Cooling fan |
| 18 | 8A616 | Cooling fan clutch |
| 19 | 010010967 | Cooling fan stator bolt (4 required) |
| 20 | 8B614 | Cooling fan stator |
| 21 | - | Cooling fan stator stud (2 required) |
- For additional information, refer to the procedures in this article.
