Coolant Pump - Gasoline Engines: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
Motorcraft Metal Surface Prep
ZC-31 |
- |
Courtesy of FORD MOTOR CO.

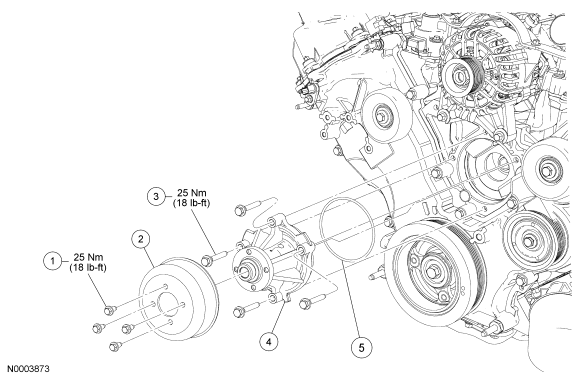

| Item |
Part Number |
Description |
| 1 |
N806282 |
Coolant pump pulley bolts (4 required) |
| 2 |
8A528 |
Coolant pump pulley |
| 3 |
N808794 |
Coolant pump bolt (4 required) |
| 4 |
8501 |
Coolant pump |
| 5 |
391108 |
Coolant pump O-ring seal |
