Starter Motor: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

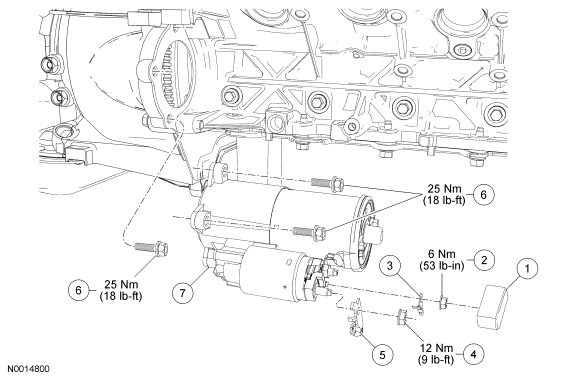

| Item |
Part Number |
Description |
| 1 |
11N087 |
Terminal cover |
| 2 |
W706414 |
Starter solenoid S-terminal nut |
| 3 |
14463 |
Starter solenoid S-terminal eyelet |
| 4 |
N805320 |
Starter solenoid B-terminal nut |
| 5 |
14463 |
Starter solenoid B-terminal eyelet |
| 6 |
W704942 |
Starter motor mounting bolt (3 required) |
| 7 |
11000 |
Starter motor |
