Transfer Case Rear Output Shaft Seal: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 303-224 (Handle) | 205-153 (T80T-4000-W) | |
| Flange Remover | 205-076 | |
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Output Shaft Oil Seal | 308-403 | |
| Remover, Torque Converter Oil Seal | 307-309 (T94P-77001-BH) | |
| Slide Hammer | 100-001 (T50T-100-A) |

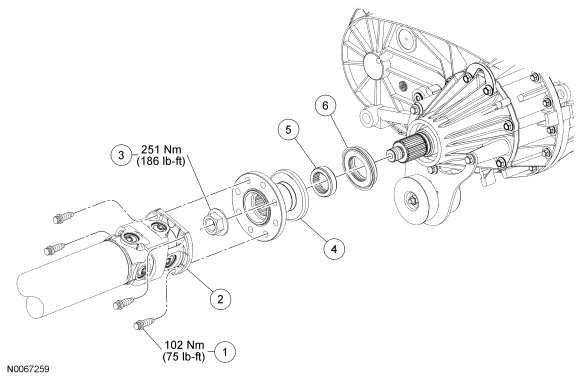

| Item | Part Number | Description |
|---|---|---|
| 1 | N811880-S | Rear driveshaft flange bolt |
| 2 | 4602 | Rear driveshaft |
| 3 | 7045 | Rear output flange nut |
| 4 | 7B214 | Flange |
| 5 | - | Shipping seal |
| 6 | 7B215 | Rear output shaft seal |
