Shock Absorber - F-450, F-550, Dana Axle: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

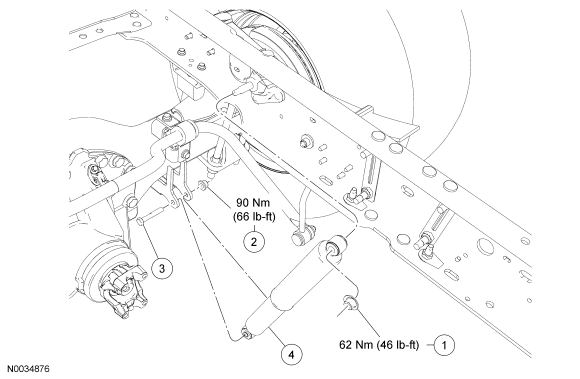

Fig 1: Identifying Shock Absorber With Specifications (F-450, F-550, Dana Axle)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N806085-S	Shock absorber upper nut and washer
2	W520114-S	Shock absorber lower nut and washer
3	W500546-S	Shock absorber lower bolt
4	18125	Shock absorber
