Drive Pinion Flange and Drive Pinion Seal: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 2-Jaw Puller | 205-D072 (D97T-4221-A) or equivalent | |
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Drive Pinion Flange | 205-285 (T88T-4851-A) | |
| Remover, Bushing | 307-001 (TOOL-1175-AC) | |
| Slide Hammer | 100-001 (T50T-100-A) |
Material
| Item | Specification |
|---|---|
| SAE 75W-90 Synthetic Axle Lubricant XT-75W90-QLS |
GL-5 |

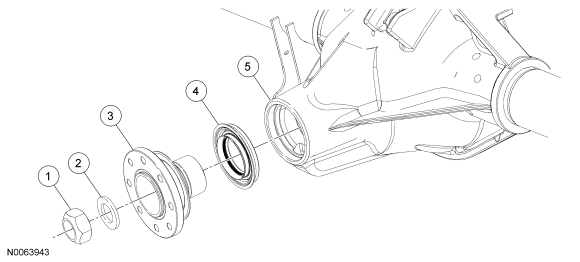

| Item | Part Number | Description |
|---|---|---|
| 1 | 354845 | Drive pinion nut |
| 2 | 4329 | Drive pinion washer |
| 3 | 4851 | Drive pinion flange |
| 4 | 4676 | Drive pinion seal |
| 5 | 4010 | Rear axle housing |
