Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Single rear wheel brake disc shown, dual rear wheel brake disc similar.

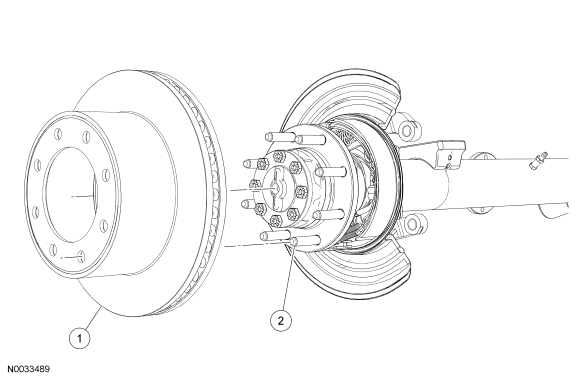

Fig 1: Identifying Brake Disc Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C026	Brake disc
2	1109	Wheel bearing and hub
