Front Brake Caliper: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |
NOTE:

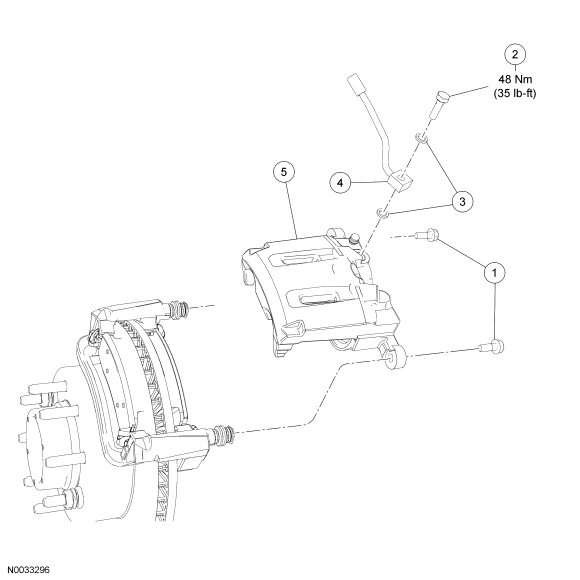

Driver side shown, passenger side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2N386 | Brake caliper bolts (2 required) |
| 2 | 385116 | Brake caliper flow bolt |
| 3 | 388949 | Copper washers (2 required) |
| 4 | 2078 | Front brake hose |
| 5 | 2B120 | Brake caliper |
