Vehicle Identification Number (VIN)

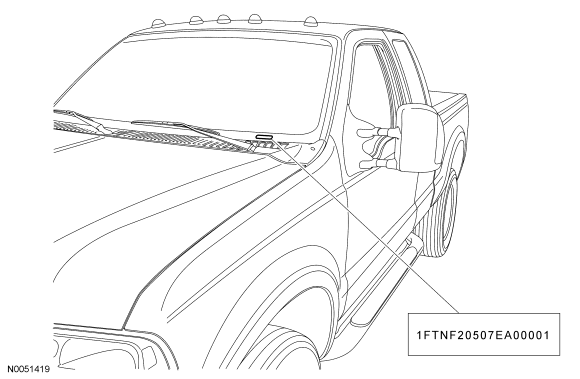

Fig 1: Vehicle Identification Number (VIN) Location

Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label.

Fig 2: Identifying VIN

Courtesy of FORD MOTOR CO.

Fig 3: Identifying World Manufacturer Identifier (WMI)

Courtesy of FORD MOTOR CO.

The first 3 vehicle identification number (VIN) positions are the world manufacturer code.

• 1FD - Ford Motor Company, USA, incomplete vehicle
• 1FT - Ford Motor Company, USA, truck, completed vehicle

Fig 4: Identifying Brake Type and Gross Vehicle Weight Rating (GVWR)

Courtesy of FORD MOTOR CO.

The fourth VIN position is the vehicle brake type and GVWR code (all vehicles use hydraulic brakes).

• N - 8,501-9,000 pounds GVWR with driver and front passenger air bags
• S - 9,001-10,000 pounds GVWR with driver and front passenger air bags
• W - 10,001-14,000 pounds GVWR with driver and front passenger air bags
• X - 14,001-16,000 pounds GVWR with driver and front passenger air bags
• A - 16,001-19,500 pounds GVWR with driver and front passenger air bags

Fig 5: Identifying Vehicle Line, Series and Body Type

Courtesy of FORD MOTOR CO.

Positions 5 through 7 indicate vehicle line, series and body type.

• F20 - F-250, Regular Cab, rear wheel drive (RWD), single rear wheels
• F21 - F-250, Regular Cab, four wheel drive (4WD), single rear wheels
• F30 - F-350, Regular Cab, RWD, single rear wheels
• F31 - F-350, Regular Cab, 4WD, single rear wheels
• F32 - F-350, Regular Cab, RWD, dual rear wheels
• F33 - F-350, Regular Cab, 4WD, dual rear wheels
• F34 - F-350, Regular Cab (Chassis Cab), RWD, single rear wheels
• F35 - F-350, Regular Cab (Chassis Cab), 4WD, single rear wheels
• F36 - F-350, Regular Cab (Chassis Cab), RWD, dual rear wheels
• F37 - F-350, Regular Cab (Chassis Cab), 4WD, dual rear wheels
• F46 - F-450, Regular Cab (Chassis Cab), RWD, dual rear wheels
• F47 - F-450, Regular Cab (Chassis Cab), 4WD, dual rear wheels
• F56 - F-550, Regular Cab (Chassis Cab), RWD, dual rear wheels
• F57 - F-550, Regular Cab (Chassis Cab), 4WD, dual rear wheels
• W20 - F-250, Crew Cab, RWD, single rear wheels
• W21 - F-250, Crew Cab, 4WD, single rear wheels
• W30 - F-350, Crew Cab, RWD, single rear wheels
• W31 - F-350, Crew Cab, 4WD, single rear wheels
• W32 - F-350, Crew Cab, RWD, dual rear wheels
• W33 - F-350, Crew Cab, 4WD, dual rear wheels
• W34 - F-350, Crew Cab (Chassis Cab), RWD, single rear wheels
• W35 - F-350, Crew Cab (Chassis Cab), 4WD, single rear wheels
• W36 - F-350, Crew Cab (Chassis Cab), RWD, dual rear wheels
• W37 - F-350, Crew Cab (Chassis Cab), 4WD, dual rear wheels
• W46 - F-450, Crew Cab (Chassis Cab), RWD, dual rear wheels
• W47 - F-450, Crew Cab (Chassis Cab), 4WD, dual rear wheels
• W56 - F-550, Crew Cab (Chassis Cab), RWD, dual rear wheels
• W57 - F-550, Crew Cab (Chassis Cab), 4WD, dual rear wheels
• X20 - F-250, SuperCab, RWD, single rear wheels
• X21 - F-250, SuperCab, 4WD, single rear wheels
• X30 - F-350, SuperCab, RWD, single rear wheels
• X31 - F-350, SuperCab, 4WD, single rear wheels
• X32 - F-350, SuperCab, RWD, dual rear wheels
• X33 - F-350, SuperCab, 4WD, dual rear wheels
• X34 - F-350, SuperCab (Chassis Cab), RWD, single rear wheels
• X35 - F-350, SuperCab (Chassis Cab), 4WD, single rear wheels
• X36 - F-350, SuperCab (Chassis Cab), RWD, dual rear wheels
• X37 - F-350, SuperCab (Chassis Cab), 4WD, dual rear wheels
• X46 - F-450, SuperCab (Chassis Cab), RWD, dual rear wheels
• X47 - F-450, SuperCab (Chassis Cab), 4WD, dual rear wheels
• X56 - F-550, SuperCab (Chassis Cab), RWD, dual rear wheels
• X57 - F-550, SuperCab (Chassis Cab), 4WD, dual rear wheels

Fig 6: Identifying Engine Code

Courtesy of FORD MOTOR CO.

The eighth VIN position is the engine displacement and number of cylinders.

• 5 - 5.4L, Modular, 3V, SOHC, EFI, V8, gas
• L - 5.4L, Modular, SOHC, EFI, V8, gas (Mexico market)
• P - 6.0L, OHV, DI Turbo, V8, Diesel
• S - 6.8L, SOHC, EFI, V10, gas (Mexico market)
• Y - 6.8L, 3V, EFI, V10, gas

Fig 7: Identifying Check Digit Code

Courtesy of FORD MOTOR CO.

The ninth VIN position is a government-assigned, computer-generated check digit.

Fig 8: Identifying Model Year Code

Courtesy of FORD MOTOR CO.

The tenth VIN position is the model year code.

• 7 - 2007

Fig 9: Identifying Assembly Plant Code

Courtesy of FORD MOTOR CO.

The eleventh VIN position is the assembly plant code.

• E - Kentucky Truck (Jefferson County, Kentucky - USA)
• M - Cautitlan Assembly (Cautitlan, Mexico) - Mexico market

Fig 10: Identifying Sequential Build Code

Courtesy of FORD MOTOR CO.

The last 6 VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number.

• A00001-F99999 - Ford Division
