Removal And Installation: Halfshaft: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

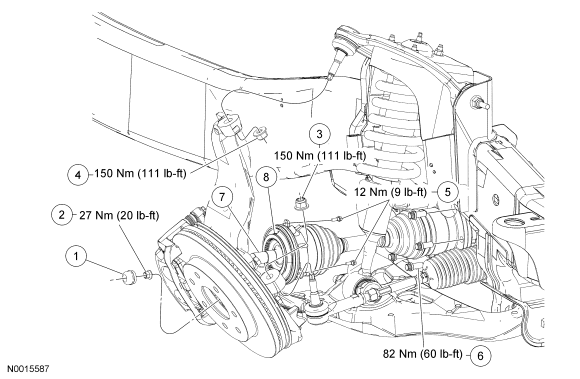

| Item | Part Number | Description |
|---|---|---|
| 1 | 1131 | Dust cap |
| 2 | N802827-S | Wheel end nut |
| 3 | W520215-S | Tie-rod nut |
| 4 | W520215-S | Upper ball joint nut |
| 5 | W710279-S | Integrated wheel end bolt (3 required) |
| 6 | N800594-S | Halfshaft flange-to-axle shaft flange bolt (6 required) |
| 7 | 3A327 | Halfshaft assembly |
| 8 | 3C247 | Integrated wheel end |
