Anti-Lock Brake System (ABS) Module: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

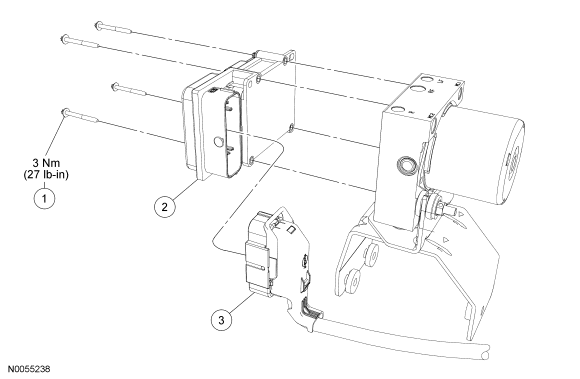

Fig 1: Identifying Anti-Lock Brake System (ABS) Module With Specifications
GF0003413Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2C398 ABS module screw (4 required) (also part of 2C219)
2 2C219 ABS module
3 - ABS module electrical connector (part of 12A581)
