Fuel Pump Module: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Wrench, Fuel Tank Sending Unit | 310-123 |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

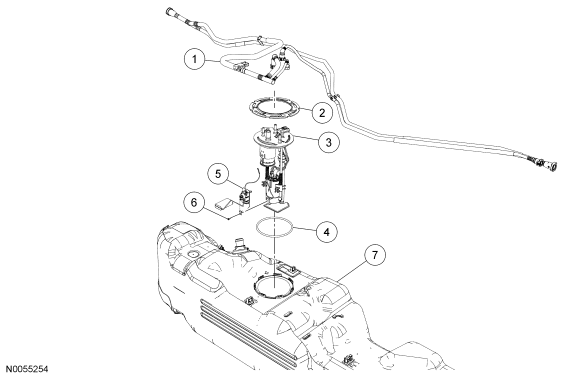

| Item | Part Number | Description |
|---|---|---|
| 1 | 9J279 | Fuel supply and vapor tube assembly |
| 2 | 9C385 | Fuel pump module locking ring |
| 3 | 9H307 | Fuel pump module |
| 4 | 9276 | Fuel pump module O-ring seal |
| 5 | 9A299 | Fuel level sensor |
| 6 | - | Fuel level sensor screw |
| 7 | 9002 | Fuel tank |
