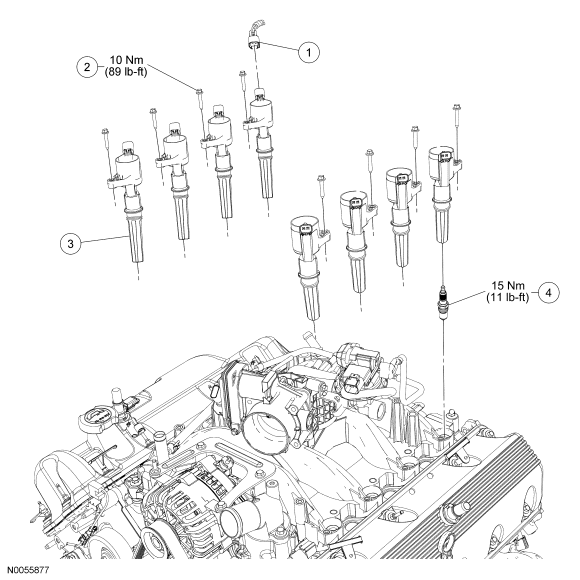

Engine Ignition Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Ignition coil electrical connector (8 required) (part of 12B637) |
| 2 |
W706175 |
Ignition coil retaining bolt (8 required) |
| 3 |
12A366 |
Ignition coil (8 required) |
| 4 |
12405 |
Spark plug (8 required) |
- For additional information, refer to the procedures in this article.
