Safety Belt System - Exploded View, Front

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver side shown, passenger side similar.

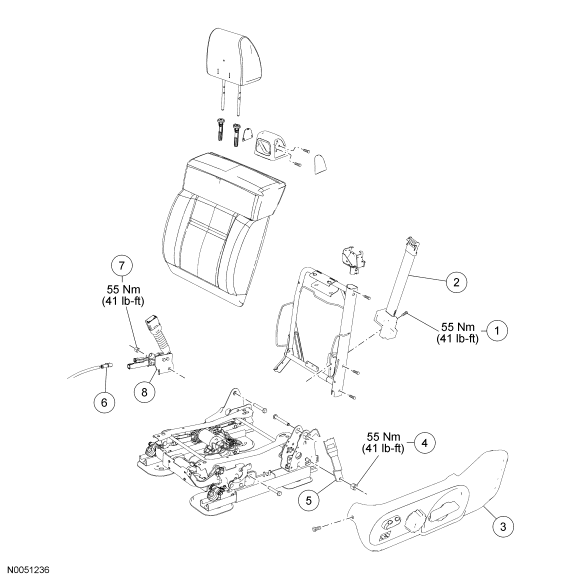

Fig 1: Exploded View Of Front Safety Belt With Seat Integrated Restraints (SIR) With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707730	Bolt, safety belt retractor
2	611B08RH/ 611B09LH	Safety belt retractor assembly
3	617D03	Side shield
4	18600A58	Safety belt anchor nut
5	-	Safety belt anchor (part of 611B09)
6	-	Safety belt buckle switch connector (part of 14C719)
7	18600A58	Safety belt buckle and pretensioner nut
8	61202RH/ 61203LH	Safety belt buckle and pretensioner assembly

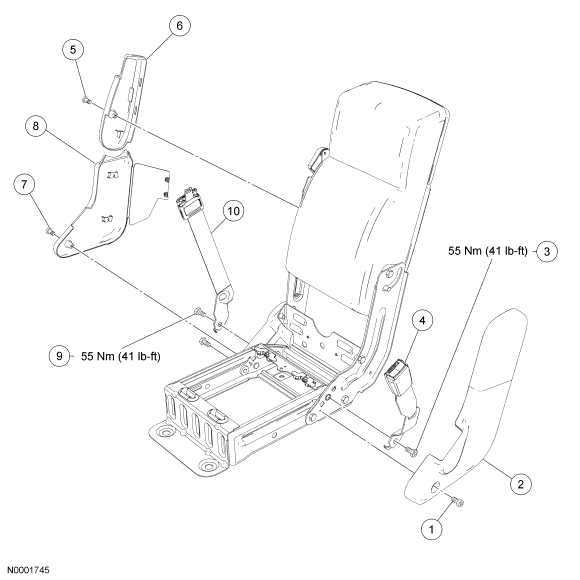

Fig 2: Front Safety Belt Buckle - 20 Percent (Regular cab) With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Screw, seat side trim panel
2	672A29	LH seat side trim panel
3	18600A58	Bolt, safety belt mini-buckle
4	611B70	Safety belt mini-buckle
5	-	Screw, RH upper seat side trim panel
6	672A28	RH upper seat side trim panel
7	-	Screw, RH lower seat side trim panel
8	645A78	RH lower seat side trim panel
9	18600A58	Bolt, safety belt buckle
10	611B70	Safety belt buckle

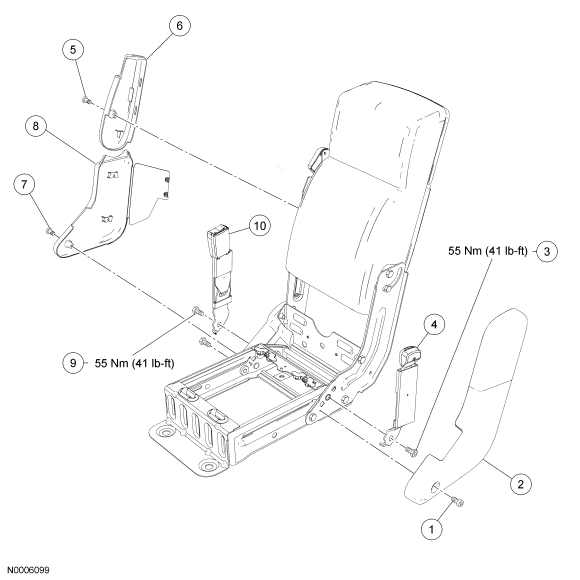

Fig 3: Front Safety Belt - 20 Percent (SuperCab and SuperCrew) With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Screw, seat side trim panel
2	672A29	LH seat side trim panel
3	-	Bolt, safety belt buckle
4	611B70	Safety belt buckle
5	-	Screw, RH upper seat side trim panel
6	672A28	RH upper seat side trim panel
7	-	Screw, RH lower seat side trim panel
8	645A78	RH lower seat side trim panel
9	-	Bolt, safety belt
10	611B76	Safety belt

NOTE: RH shown, LH similar.

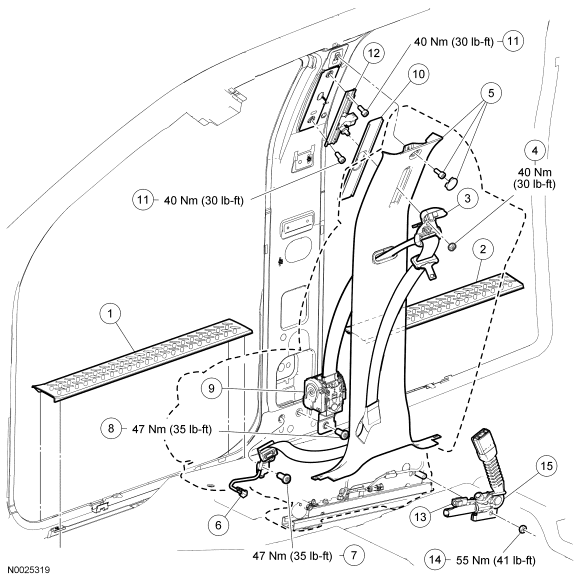

Fig 4: Front Safety Belt Without Seat Integrated Restraints (SIR) With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7813200	Front door scuff plate
2	7813244	Rear door scuff plate
3	-	D-ring cover (part of 611B08 RH/611B09 LH)
4	W707636	Nut, D-ring
5	78243A52RH/ 78243A53LH	B-pillar trim panel
6	-	Belt tension sensor connector (passenger seat only) (part of 14A005)
7	W709826	Safety belt anchor bolt
8	-	Bolt, safety belt and retractor assembly
9	611B08 RH/ 611B09 LH	Safety belt and retractor assembly
10	602B90	Cover, shoulder height adjuster
11	-	Bolt(s), shoulder height adjuster (Part of 602B82)
12	602B82	Shoulder height adjuster
13	-	Safety belt buckle pretensioner switch connector
14	18600A58	Safety belt buckle pretensioner nut
15	611202RH/ 611203LH	Safety belt buckle pretensioner

For additional information, refer to the procedures in this article.
