Bumper Cover - Front: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

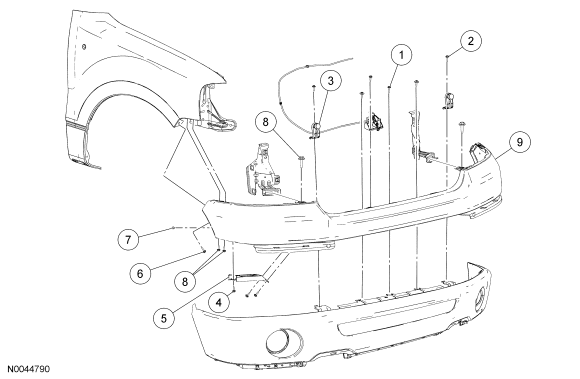

| Item | Part Number | Description |
|---|---|---|
| 1 | N811847-S102 | Front bumper cover-to-front bumper bolt (3 required) |
| 2 | W505425-S439 | Hood over-slam bumper retaining bolt (2 required) |
| 3 | 16G016 | Hood over-slam bumper (2 required) |
| 4 | W705549-S | Front bumper cover brace bolt (6 required) |
| 5 | 17E942 RH/ 17E943 LH | Front bumper cover brace |
| 6 | W702434-S439 | Front bumper cover-to-front fender bolt (2 required) |
| 7 | - | Front bumper cover pin-type retainer (2 required) |
| 8 | W505424-S439 | Front bumper cover bolt (6 required) |
| 9 | 17D957 | Front bumper cover |
