Bumper - Front: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

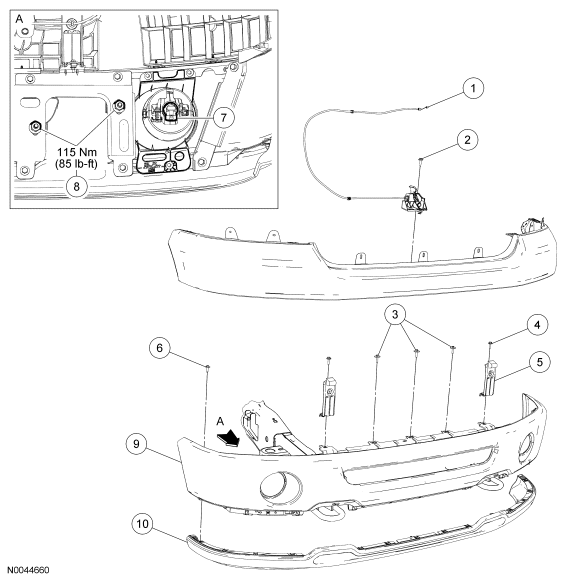

| Item | Part Number | Description |
|---|---|---|
| 1 | W505424-S301 | Hood release retaining bolt |
| 2 | 16B975 | Hood release assembly |
| 3 | N811847-S102 | Front bumper cover-to-front bumper bolts (3 required) |
| 4 | W505425-S439 | Hood over-slam bumper retaining bolts (2 required) |
| 5 | 16G016 | Hood over-slam bumpers (2 required) |
| 6 | W706599-S439 | Air dam retaining bolts (13 required) |
| 7 | 180101-12A581 | Fog light electrical connector (if equipped) |
| 8 | N804525-S440 | Frame mounting bracket-to-front bumper nuts (4 required) |
| 9 | 17750 | Front bumper |
| 10 | 17B635 | Air dam |
