Ignition Switch: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

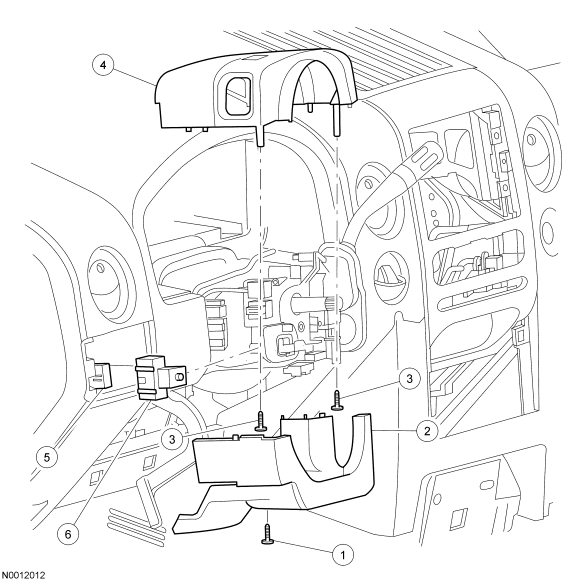

| Item |
Part Number |
Description |
| 1 |
W504041 |
Lower steering column shroud screw |
| 2 |
3530 |
Lower steering column shroud |
| 3 |
W506824 |
Upper steering column shroud screw (2 required) |
| 4 |
- |
Upper steering column shroud |
| 5 |
- |
Ignition switch electrical connector (part of 14401) |
| 6 |
11572 |
Ignition switch |
