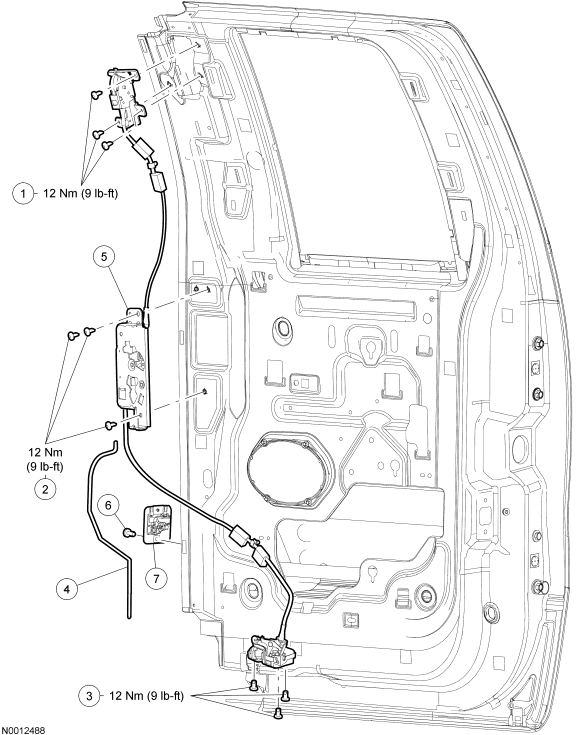

Rear Door Handles, Locks and Latches - Exploded View, SuperCab
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N811471 | Upper door latch bolts (3 required) |
| 2 | N811471 | Rear door latch remote control assembly bolts (3 required) |
| 3 | N811471 | Lower door latch bolts (3 required) |
| 4 | 1826642/ 1826643 | Actuating rod (RH/LH) |
| 5 | 18264A00/ 18264A01 | Latch remote control assembly (RH/LH) |
| 6 | W706580 | Rear door interlock screw |
| 7 | 18266B44/ 1826645 | Rear door interlock (RH/LH) |
- For additional information, refer to the procedures in this article.
