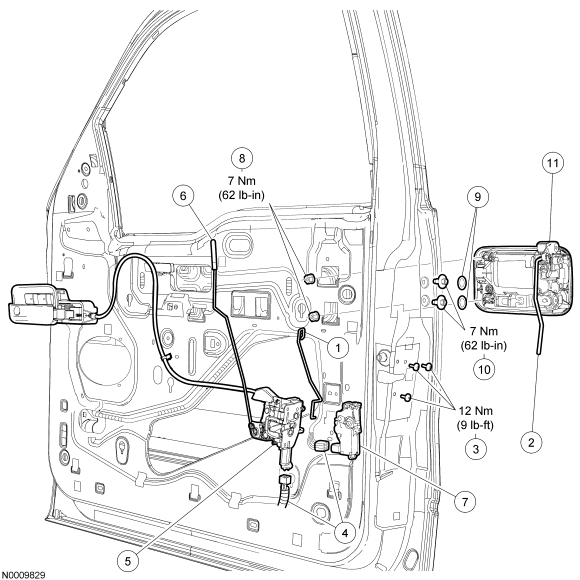

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 1522134/ 1522135 | Lock cylinder actuating rod (if equipped) (RH/LH) |
| 2 | 1522152/ 1522153 | Exterior front door handle actuating rod (RH/LH) |
| 3 | N811471 | Front door latch bolts (3 required) |
| 4 | - | Front door latch electrical connector(s) (part of wiring harness 14A005) |
| 5 | 1521812/ 1521813 | Front door latch (RH/LH) |
| 6 | 1521852/ 1521853 | Front door lock rod (RH/LH) |
| 7 | 78218A43 | Front door lock actuator (if equipped) |
| 8 | N620480-S438 | Exterior front door handle nuts (2 required) |
| 9 | W709073 | Exterior front door handle nut seals (2 required) |
| 10 | W709562 | Exterior front door handle bolts (2 required) |
| 11 | 1522404/ 1522405 | Exterior front door handle (RH/LH) |
- For additional information, refer to the procedures in this article.
