Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

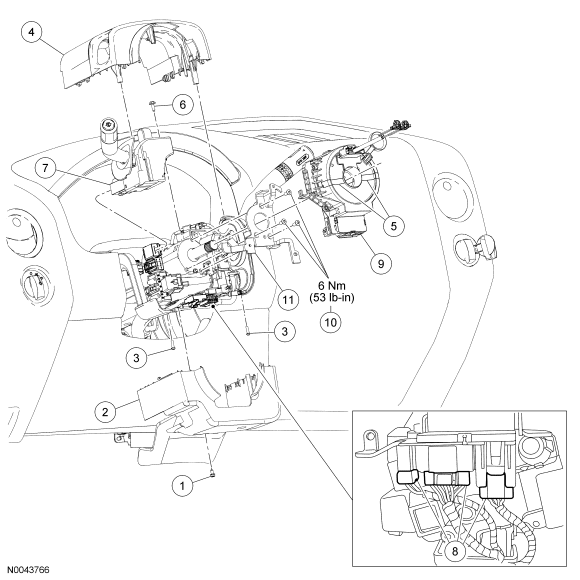

| Item | Part Number | Description |
|---|---|---|
| 1 | W504041 | Lower steering column shroud screw |
| 2 | 3K512 | Lower steering column shroud |
| 3 | W505932 | Upper steering column shroud screws |
| 4 | 3530 | Upper steering column shroud |
| 5 | - | Tape |
| 6 | - | Multi-function switch screw |
| 7 | 13K359 | Multi-function switch |
| 8 | 14401 | Clockspring connectors |
| 9 | 14A664 | Clockspring |
| 10 | - | Clockspring mounting bracket screws (part of 3678) |
| 11 | 3678 | Clockspring mounting bracket |
