Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS): Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
The air bag supplemental restraint system (SRS) is designed to provide increased collision protection for front seat occupants in addition to that provided by the 3-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantage of the SRS.
This vehicle line contains dual-stage deployment (advanced restraint system) driver and front passenger air bag modules.

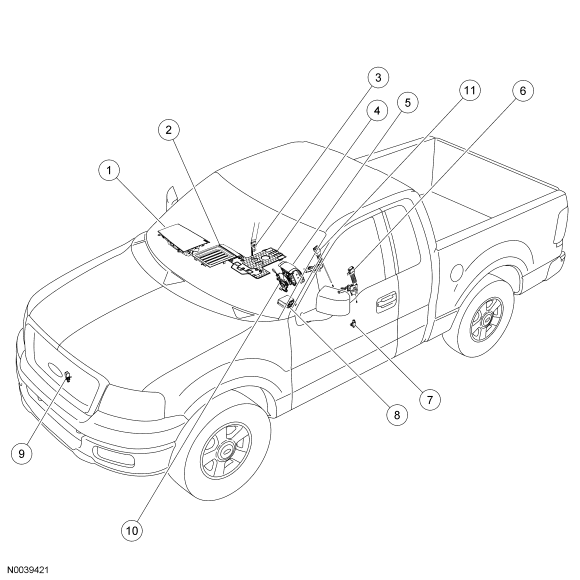

| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module |
| 2 | 14B268 | Passenger air bag deactivation (PAD) indicator |
| 3 | 611B08 | Belt tension sensor (BTS) (part of passenger safety belt retractor) |
| 4 | 603B02 | Occupant classification sensor (OCS) system |
| 5 | 043B13 | Driver air bag module |
| 6 | 61203 | Driver safety belt buckle pretensioner |
| 7 | 14B416 | Driver seat track position sensor |
| 8 | 14B321 | Restraints control module (RCM) |
| 9 | 14B004 | Front impact severity sensor |
| 10 | 14A664 | Clockspring |
| 11 | 61202 | Passenger safety belt buckle pretensioner |
