Air Conditioning (A/C) Compressor - 4.6L, 5.4L: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

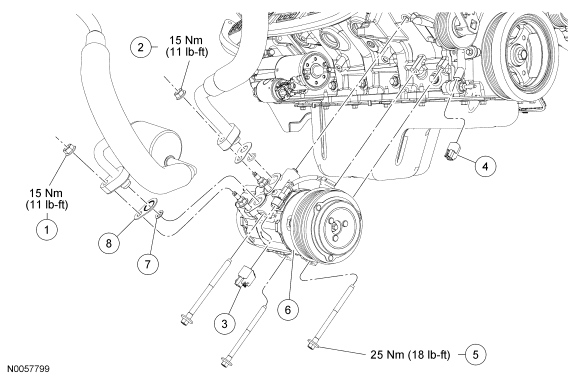

Fig 1: Identifying Air Conditioning (A/C) Compressor - 4.6L, 5.4L Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	A/C compressor discharge fitting nut
2	W520413	A/C compressor suction fitting nut
3	12A581	Clutch field coil electrical connector
4	12A581	Crankshaft position (CKP) sensor electrical connector
5	N806184	A/C compressor bolt (3 required)
6	19703	A/C compressor
7	19E889	O-ring seal (2 required)
8	19B558	Gasket seal (2 required)
