Vehicle Security Module (VSM) - Regular Cab: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicles built before 12/2006 will have 3 electrical connectors (as shown) to the VSM, with one of them being used for the external tire pressure monitoring system (TPMS)/remote keyless entry (RKE) antenna. Vehicles built after 12/2006 will have 2 electrical connectors to the VSM, which will utilize an internal TPMS/RKE antenna.

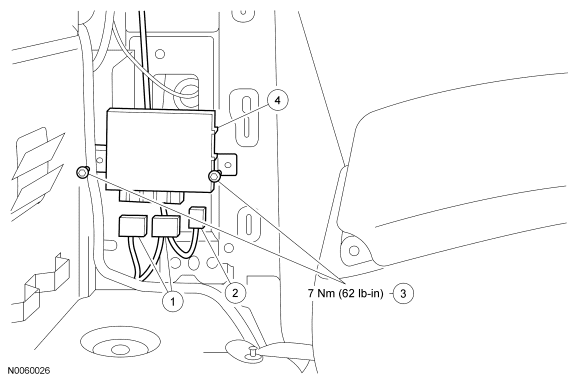

Fig 1: Identifying Vehicle Security Module (VSM) With Specifications - Regular Cab
GF0004738Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - VSM electrical connectors (part of 14A005)
2 14A614 VSM tire pressure monitoring system (TPMS)/remote keyless entry (RKE) antenna
3 W706281 VSM screws (2 required)
4 15K602 VSM
