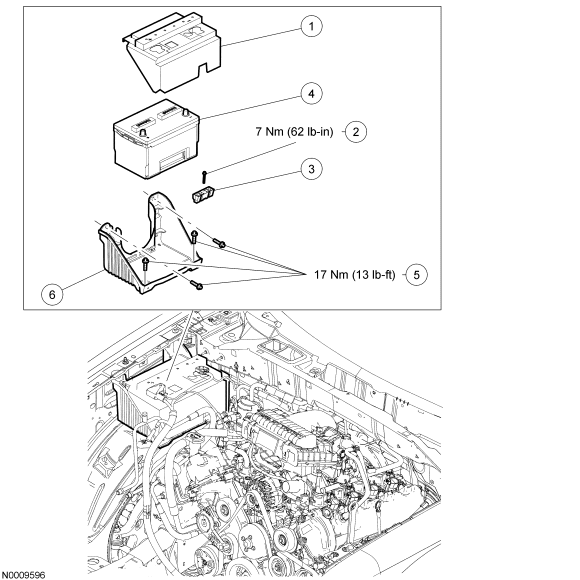

Battery and Battery Tray - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
10A682 |
Battery cover |
| 2 |
W710602-S439 |
Battery hold-down bolt |
| 3 |
10718 |
Battery hold-down clamp |
| 4 |
10655 |
Battery |
| 5 |
W710603-S349 |
Battery tray bolts (4 required) |
| 6 |
10732 |
Battery tray |
- For additional information, refer to the procedures in this article.
