Battery Cables - 4.2L: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

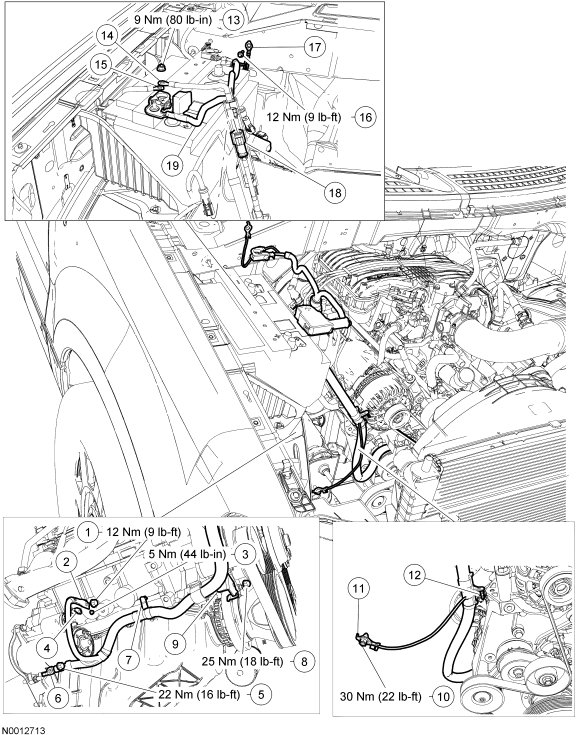

| Item | Part Number | Description |
|---|---|---|
| 1 | W706414 | Starter solenoid positive cable nut |
| 2 | - | Starter solenoid positive cable terminal (part of 14300) |
| 3 | W705790-S901 | Starter solenoid wire nut |
| 4 | - | Starter solenoid wire terminal (part of 14300) |
| 5 | N802001-S437 | Starter motor ground cable nut |
| 6 | - | Starter motor ground cable terminal (part of 14300) |
| 7 | - | Battery cable harness locator (part of 14300) |
| 8 | - | Battery cable lower bracket nut |
| 9 | - | Battery cable lower bracket (part of 14300) |
| 10 | - | Battery ground cable frame terminal bolt (part of 14300) |
| 11 | - | Battery ground cable frame terminal (part of 14300) |
| 12 | - | Battery cable harness locator (part of 14300) |
| 13 | W705790-S301 | Generator harness terminal/central junction box (CJB) cable nut |
| 14 | - | Generator harness terminal (part of 14305) |
| 15 | - | Central junction box (CJB) cable terminal (part of 14A067) |
| 16 | W570561- S437M | Battery ground cable body terminal bolt |
| 17 | - | Battery ground cable body terminal (part of 14300) |
| 18 | - | Battery cable harness in-line electrical connector (part of 14300) |
| 19 | 14300 | Battery cable assembly |
