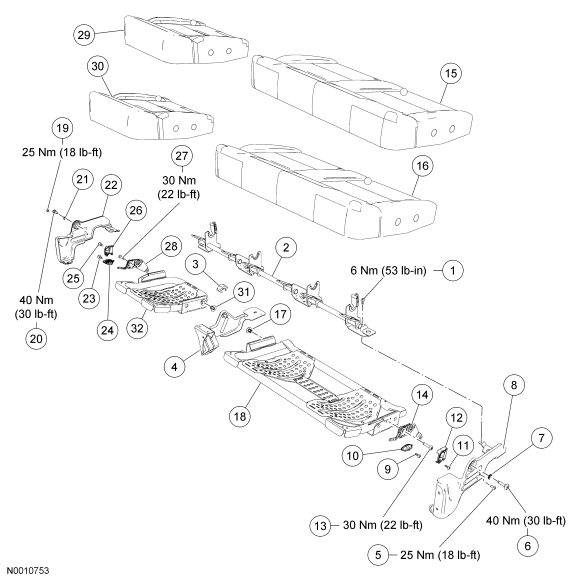

Seat - Exploded View, Rear
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
SuperCab shown, SuperCrew similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Rear seat lower anchors and tethers for children (LATCH) bolts (4 required) |
| 2 | - | Rear seat LATCH |
| 3 | 638A96 | 60/40 seat retention clip |
| 4 | 60674 | Center support riser |
| 5 | - | 60 percent support riser bolt |
| 6 | - | 60 percent support riser pivot bolt |
| 7 | 605A56 | 60 percent outboard support riser bolt bushing |
| 8 | - | Left support riser |
| 9 | 67413 | 60 percent seat cushion latch handle screw |
| 10 | 61735 | 60 percent seat cushion latch handle |
| 11 | - | 60 percent seat cushion latch cover screw |
| 12 | 638A87 | 60 percent seat cushion latch cover |
| 13 | - | 60 percent seat latch cushion bolt |
| 14 | 67413 | 60 percent seat cushion latch |
| 15 | 63805 | 60 percent cushion trim cover |
| 16 | 63841 | 60 percent cushion foam pad |
| 17 | 638A80 | 60 percent inboard pivot bushing |
| 18 | - | 60 percent cushion frame |
| 19 | - | 40 percent support riser bolt |
| 20 | - | 40 percent support riser pivot bolt |
| 21 | 605A56 | 40 percent outboard support riser bolt bushing |
| 22 | 60674 | Right support riser |
| 23 | - | 40 percent seat cushion latch handle screw |
| 24 | 61736 | 40 percent seat cushion latch handle |
| 25 | - | 40 percent seat cushion latch cover screw |
| 26 | 638A86 | 40 percent seat cushion latch cover |
| 27 | - | 40 percent seat cushion latch bolt |
| 28 | 67412 | 40 percent seat cushion latch |
| 29 | 63804 | 40 percent cushion trim cover |
| 30 | 63840 | 40 percent cushion foam pad |
| 31 | 638A80 | 40 percent inboard pivot bushing |
| 32 | - | 40 percent cushion frame |
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint (2 required) |
| 2 | 613D58 | Head restraint sleeve (2 required) |
| 3 | 613D58 | Head restraint sleeve (2 required) |
| 4 | 66600 | Backrest trim cover |
| 5 | 66801 | Backrest foam pad |
| 6 | 613A38 | Backrest frame |
- For additional information, refer to the procedures in this article.
