Seat Backrest - Front, 20 Percent: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

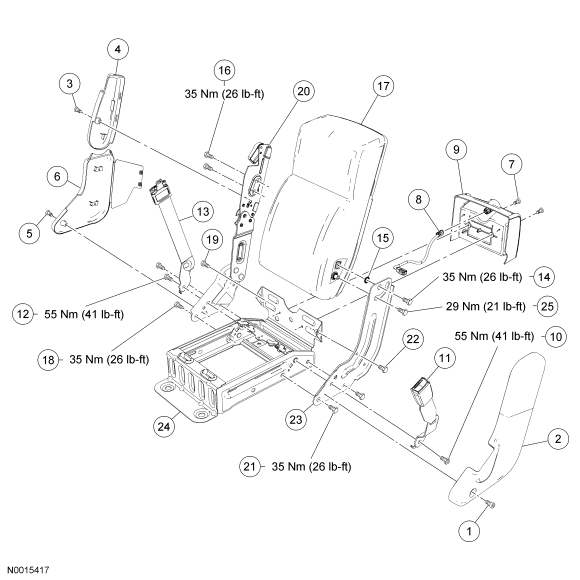

Fig 1: Identifying Front Seat Backrest - 20 Percent, With Storage And With Specifications
GF0001934Courtesy of FORD MOTOR CO.
Item Part Number Description
1 851334 LH side shield screw
2 672A29 LH side shield
3 851334 RH upper side shield screw
4 672A28 RH upper side shield
5 851334 RH lower side shield screw
6 645A78 RH lower side shield
7 851334 Cupholder screws (if equipped)
8 14489 Electrical disconnect (if equipped)
9 600D00 Cupholder assembly (if equipped)
10 - Safety belt buckle bolt
11 611B70 Safety belt buckle
12 - Safety belt anchor bolt
13 611B76 Lap safety belt
14 - LH backrest bracket pivot bolt
15 654A76 LH backrest pivot bolt bushing
16 - RH adjustable backrest bracket bolts (2 required)
17 644A22 Adjustable backrest
18 - RH lower adjustable backrest bracket bolts (2 required)
19 - RH lower adjustable backrest bracket screw
20 64580 RH adjustable backrest bracket
21 - LH lower backrest bracket pivot bolts (2 required)
22 - LH lower backrest bracket pivot screw
23 64480 LH backrest pivot bracket
24 61708 Riser frame
25 - Backrest stop bolt

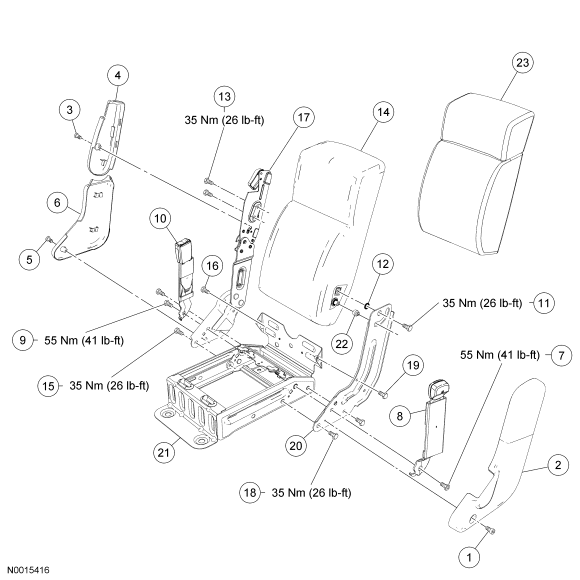

Fig 2: Identifying Front Seat Backrest - 20 Percent, Without Storage And With Specifications
GF0001909Courtesy of FORD MOTOR CO.
Item Part Number Description
1 851334 LH side shield screw
2 672A29 LH side shield
3 851334 RH upper side shield screw
4 672A28 RH upper side shield
5 851334 RH lower side shield screw
6 645A78 RH lower side shield
7 - Safety belt mini-buckle bolt
8 611B70 Safety belt mini-buckle
9 - Safety belt buckle bolt
10 611B76 Safety belt buckle
11 - LH backrest bracket pivot bolt
12 654A76 LH backrest pivot bolt bushing
13 - RH adjustable backrest bracket bolts (2 required)
14 644A22 Adjustable backrest
15 - RH lower adjustable backrest bracket bolts (2 required)
16 - RH lower adjustable backrest bracket screw
17 64580 RH adjustable backrest bracket
18 - LH lower backrest bracket pivot bolts (2 required)
19 - LH lower backrest bracket pivot screw
20 64480 LH backrest pivot bracket
21 61708 Riser frame
22 - Backrest stop spacer
23 - Backrest trim cover
