Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

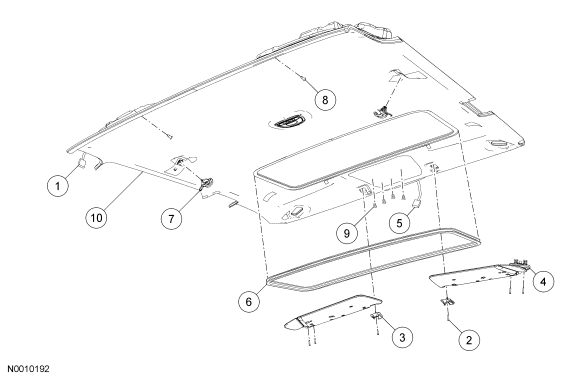

Headliner with a roof opening panel shown. Headliners without the roof opening panel similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14358 | Rear electrical connector |
| 2 | - | Sun visor retaining screw (6 required) |
| 3 | 1504132 | Sun visor retaining clip |
| 4 | 1504100 RH/ 1504101 LH | Sun visor |
| 5 | 14334 | Interior mirror electrical connector |
| 6 | 7852124 | Roof opening panel trim (if equipped) |
| 7 | 29019 | Coat hook (2 required) |
| 8 | - | Headliner pin-type retainer (2 retainers) |
| 9 | - | Modular overhead console track screw (if equipped) (4 required) |
| 10 | 1651968 | Headliner |
